Multi-Tool Toolholder for Swiss-Type Machines

Posted by CNC Reporter on Sep 13th, 2010.

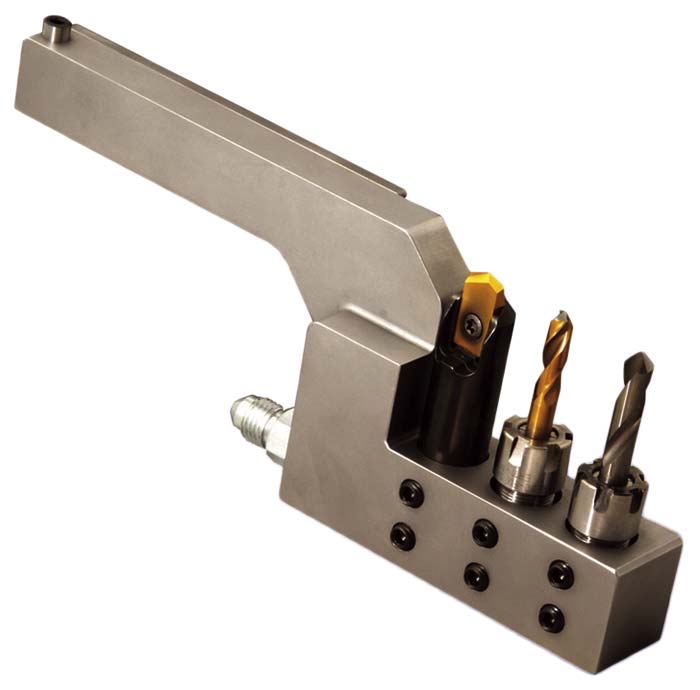

GenSwiss GenBore Triple ID Tool HolderGenSwiss has introduced the GenBore® ID Triple Tool Holder that adds three ID tool stations in place of a standard OD turning position on most Swiss-Type CNC machines. With The GenBore Tool Holder ID work can be expanded to include spotting, boring or drilling, all from one position for more cost-effective machining of complex parts. The tool holder features easy integration of high pressure coolant delivery systems, and can be configured for thru-coolant delivery through one, two or all three tool positions.

The GenBore includes (3) ER11 5/8” shank collet sleeves, removable location screw to re-position the holder on the gang plate, and set screws on both sides of the holder to suit RH & LH machine layouts. The ½” shank includes shim-plate for machines using 5/8” shank tooling. When required The GenBore can be easily removed returning to a standard OD turning position to suit specific machining requirements.
